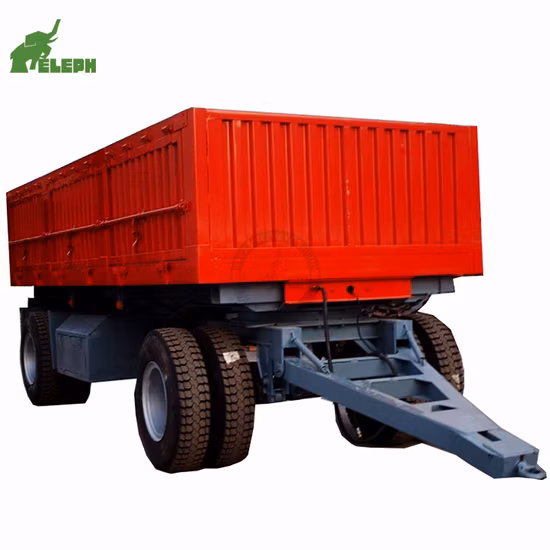

2/3 Axles 20FT Full Drawbar Side Wall Tractor Trailer

Basic Info.

Model NO.	ELPFTSWT
Certification	ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Wheel Base	8000-9000mm
Tread	2240mm
Grade	Heavy Duty
Types of Suspension Systems	No
Shape	Flatbed
Axle Number	2/3/4
Tire Number	8/12/16
Self-dumping	Not Self-dumping
ABS Anti-lock Braking System	ABS Anti-lock Braking System
Material	Steel
Condition	New
Logo	Customized
Transport Package	Null
Specification	20ft/40ft
Trademark	ELP
Origin	Shandong, China
HS Code	87163990
Production Capacity	500units Per Month

Product Description

2 Axles 3 axles 20t 20ft 28ft 30ft 40ft Cargo Draw Bar tractor Flatbed side wall Dolly Trailer

RELATED DRAWBAR FULL TYPE TRAILER

ELEPH TRUCK SEMI TRAILERS EXPORTING

ELEPH CUSTOEMRS FROM THE WORLD

CONTACT WITH ME ANY TIME, YOU ARE WELCOME ALWAYS

DRAWBAR FULL TYPE FLATBED TRAILER
Axle No.		Axle Location		Tire No.	Length	Rating Capacity
1		Rear		4	4000-7500mm	15Tons
2		1+1		8	7500-12500mm	40Tons
3		1+2		12	12500-15000mm	60Tons
4		2+2		16	15000-18000mm	80Tons
Suspension			America type mechanical Suspension
	Wheel		11:00 R20
	Turntable		Diameter is 1100mm
	Traction hook		DN50
	Traction bar		Length is 1.4m
	Dimensions(LxWxH)		7500-18000×2500×1500mm
	Steel Spring		10/10 pieces per axles
Tire:
	The material of Main beam		The height of the beam is420mm,upper plate is 12mm*140,down plate is 12*140mm,middle plate is 6mm(strictly).made of Q345
	Platform plate		Skeletal
Brake:			WABCO VALVE
	Brake		Kemi Brand of China
	Brake Chamber		TWO double and two single chamber( TKL brand )
	ABS system		with
Electrical:
	Voltage		24V
	Receptacle		7 ways(7 wire harness)
Light color:			(LED light)
	Side marker lamp		Orange
	Rear lamp		Red
	Turn signal lamp		Orange
Miscellaneous:
	Painting		Can be choose freely
	Marking		According to the requirement of the buyer
	Side Guard		According to the requirement of the buyer
	Tools box		One pieces or According to the buyer(1m length)
	Water tank		The size can be choose freely.
