Overview

Basic Info.

Model NO.	CLV9200CST
Type	Full Trailer
Load Capacity	80T
Certification	ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Wheel Base	7000-8000mm
Tread	1820mm
Grade	Heavy Duty
Types of Suspension Systems	Leaf Spring Suspension
Shape	Flatbed
Axle Number	2 Axles
Tire Number	5 PCS
Self-dumping	Self-dumping
ABS Anti-lock Braking System	ABS Anti-lock Braking System
Material	Steel
Condition	New
Dump Box Size	7500*2600*1600 (mm) (Customized Sizes)
Tyre	12.00r20 Tyres
Axle Brand	Fuwa/BPW
Thickness	Side Wall 2mm; Bottom 4mm
Container Lock	4 Lift Locks
Electric System	One Unit of 24V 7-Pin ISO Standard Socket
Fence Structure	900mm Side Wall + 100mm Space + 440mm Fence
Turntable	30t Three Bead Turntable
Main Beam	420mm Height, Top Plate 14mm Thickness*140mm Width
Platform	3 mm Thickness Pattern Plate
Axle	Original Zy/BPW Brand, 13 Ton, 10 Holes
Leaf Spring	100(W)mm *12mm(Thickness)*12 Layers, 6 Sets
Steel Rim	9.00-20, 12 PCS
Spare Tire Carrier	1 Set (New Design , Can Put Two Spare Tires)
Brake System	Wabco Re 6 Relay Valve; T30/30+T30 Air Chamber
Transport Package	by Container or Bulk Cargo
Specification	9900*2600*3060 (mm)
Trademark	LUCKIN VEHICLE
Origin	China
HS Code	8716319000
Production Capacity	3000units/Years

Product Description

Factory Outlet Utility 1-4 Axle Farm Dump/Stainless Steel Tank/Side Fence Cargo/Dolly Drawbar Full Trailer

Product Description

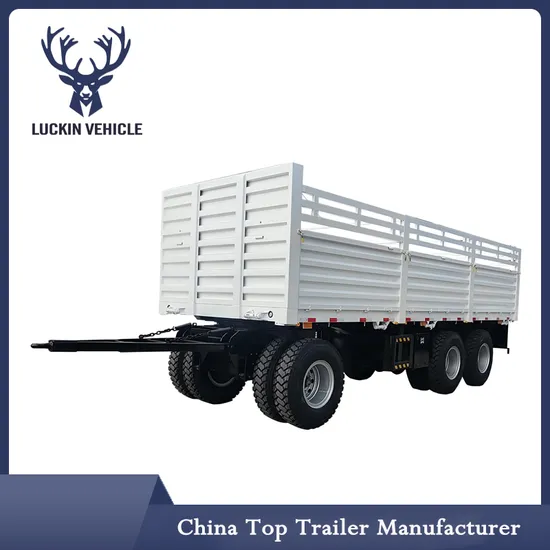

LUCKIN VEHICLE 3 Axles Fence Drawbar Dolly Full Trailer is a self-supporting, unpowered trailer which has at least one axle at either end of the trailer. The front axle is connected to a drawbar and the axle pivots to provide steering, following the direction in which the drawbar is pulled. This is sometimes called a dolly.The key differences between a semitrailer and a drawbar trailer are that a semitrailer does not have wheels at the front, it has a kingpin which fits inside a fifth-wheel or turntable coupling, and the front of the trailer is supported on the rear wheels of the prime mover.

Detailed Photos

We are a factory with a large inventory of stock, which guarantees that the goods will be shipped within the shortest time from the date of signing the contract.

6. How to get samples?

We can provide samples for buyer's testing free of charge, but buyers need to pay for shipping costs.
