High Quality 30 Tons Full Drawbar Hydraulic Tipper Semi Trailer

• Overview
• Company
• Product Description
• Products
• Workshop
• Packaging & Shipping
• Exhibition
• Customer Feedback
• FAQ

Overview

Basic Info.

Model NO.	GD9390P
Type	Full Trailer
Load Capacity	25T
Certification	ISO9001, CCC, ISO/TS16949
Wheel Base	3000-4000 mm
Tread	1820mm
Grade	Light Duty
Types of Suspension Systems	Candle Type
Shape	Van
Axle Number	2
Tire Number	4
Self-dumping	Not Self-dumping
ABS Anti-lock Braking System	ABS Anti-lock Braking System
Material	Steel
Condition	New
Trailer Type	Farm Dump Trailer
Usage	Transport Farm Cargo Goods
Capacity	8t
Axles	2 Axles
Tire	4 Sets of 10r22.5
Suspension	Steel Mechanical Suspension
Towing Bar	Strong Towing Bar
ABS	Installed
Other Capacity	Available
Transport Package	No Packing
Specification	Full trailer
Trademark	GDSS
Origin	China
HS Code	87163990
Production Capacity	50 Units/Month

Packaging & Delivery

Package Size700.00cm * 250.00cm * 270.00cm Package Gross Weight6000.000kg

Product Description

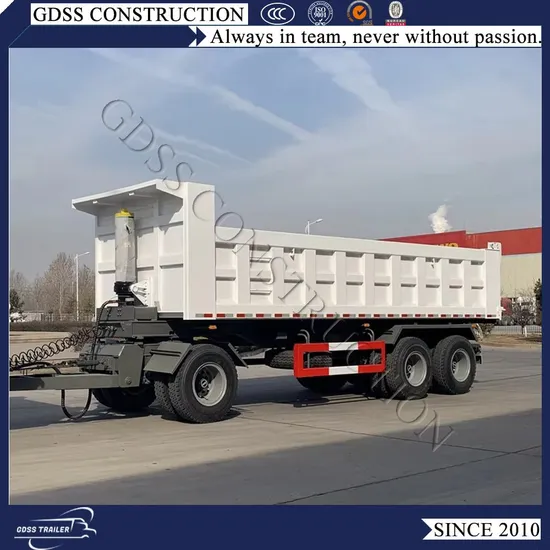

Drawbar Trailer

Company Product Description

Overall length	4000-10000 mm
Overall width	2500 mm
Overall height	2500 mm
Tare weight	4000-6000 kgs
Loading capacity	5-20 Tons
Chassis	Constructed of original main beams electrically welded with corresponding extra strong cross member."I" type main beam, high strength steel of 200mm, of material type Q345B.
Axle	2 axles
	Farm type axles.
Hydraulic system	Hydraulic cylinder, meet the trailer's capacity.
Suspension	Leaf spring suspension, 10 pieces of each set
Floor and side wall	Thickness of 3 mm, steel plate floor Side wall of Thickness of 3 mm.
Towing bar	Heavy duty towing bar to couple the trailer and tractor.
Rim	8.25x22.5, 8-16 pieces
tyre	11R22.5, 8-16 pieces
Braking system	Double line brake system
Electrical	24V DC. Include tail lamp, brake lamp, red reflector and direction indicator fitted on rear end of trailer. Convey lamp on each side of the trailer.
Painting	Blasting before painting, one coat of primer then two coats of high quality paint. Color:according to customer.
Accessories	One spare tire; rear bumper; ladder; tool box.

Products

Workshop

Packaging & Shipping

Exhibition

Customer Feedback

FAQ

1. How to place the order of the unit that you want? A. Tell us what kind of trailer or truck that you want; B. Tell us all your requirements; C. Design and quotation will be made as per your requirements; D. Confirm the contract detail like payment terms and delivery terms, then sign it; E. Make the transfer of deposit and send us the bank slip; F. After the receipt of deposit, we will start the production immediately. G. After the trailers completed, there will be video or photos send to you. Then you make the balance transfer. H. After recived the balance, will book the vessel and delivery the trailers to your deicharge seaport. 2. What's The Guarantee Period On Our Products ? -All trailers that we export have a one-year guarantee period of the beam, other parts like axle and tires will be guaranteed by our suppliers. 3. Whether Customized Service Provided ? - Yes, you can tell us what you want. Then we will check whether it is ok and reasonable. 4. Whether Can Couple With Your Tractor Head ? - Yes, we can make the design as per your tractor's data, like fifth wheel height and turning radius. 5. What's The Time For Delivery & Arrival ? Usually for one unit it will take 25 working days to complete the production. After the production completed, we will try to catch the earliest vessel to you. 6. Whether Can We Help to Reduce Your Import Duties? We can offer you the lower value documents to do the custom clearance, like invoice, C/O and so on.
