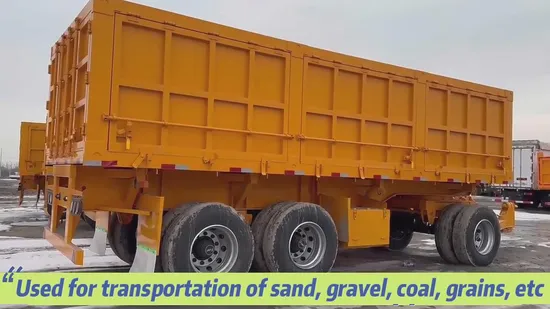

Support Customized High Quality Full Trailer with Drawbar Side Wall Towing Semi Trailer Dump Full Trailer

• Overview
• Product Description
• Specification
• Certifications
• Packaging & Shipping
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	LUXI
Certification	ECE, CE, ISO9001, CCC, ISO/TS16949, Ottc
Wheel Base	7000-8000mm
Tread	1820mm
Grade	Heavy Duty
Types of Suspension Systems	Leaf Springs and Air Suspension
Shape	Customizable
Axle Number	3/4/5
Tire Number	12/16/20
Self-dumping	Customizable
ABS Anti-lock Braking System	Selectable
Material	Steel
Condition	New
Transport Package	Nude
Specification	Customized
Trademark	LUXI
Origin	China
HS Code	8716391000
Production Capacity	5000piece/Year

Product Description

FULL SEMI TRAILER1. Greater transportation capacity: Compared to other types of trucks, full trailers and semi trailers can transport more goods. They have higher carrying capacity and can meet the transportation needs of large quantities of goods.2. High flexibility: Full trailers and semi trailers can be equipped with different types of trailers according to requirements, adapting to the transportation of various types and sizes of goods. This flexibility enables them to meet various transportation needs and improve transportation efficiency.3. Good maneuverability: The connection device between the tractor and trailer in the full trailer semi-trailer improves the overall maneuverability of the vehicle. The front of the tractor supports the front of the trailer, making the turning radius smaller, driving more stable, and reducing the difficulty of handling.4. Fuel efficiency: Compared to full trailers, full trailers and semi trailers are relatively lighter in weight. The tractor only needs to bear a portion of the weight of the trailer, thereby reducing fuel consumption. This can save fuel costs, especially for long-distance transportation.
5. Reduce traffic congestion: Although the length of fully trailer and semi trailer vehicles is relatively long, trailers can be detached from tractors for independent driving as needed. Product Description

1. Trailer design can be semi trailer or prime mover trailer.
2. Cushion height is optional
3. The number of axles can be 1, 2, 3, or 4, used for transporting goods of different weights.
4. Trailers can be skeleton or flatbed.
5. Trailers can be interconnected with series axles
6. Container twist locks can be used to connect with cushions.
7. The suspension can be a regular leaf spring suspension, air suspension, or bogie suspension.Full pull trailers are mainly used for long-distance transportation of goods, especially suitable for loading large volume, lightweight goods such as furniture, appliances, etc. The advantage of a full trailer is that it is completely supported by the vehicle, providing greater loading space and suitable for scenarios that require transporting large quantities of goods at once. In addition, due to its lower center of gravity, full pull trailers typically provide more stable driving performance under appropriate road conditions, ensuring higher safety when transporting large cargo.

There are significant differences in configuration between full trailers and semi trailers. Full pull trailers usually have independent chassis structures, and the trailer body is not directly connected to the tractor, but is connected through one or more connection points. This design enhances the load-bearing capacity and stability of the full trailer, making it particularly suitable for long-distance transportation. In contrast, the front half of a semi-trailer is supported by the tractor, while the rear half is supported by the trailer itself, resulting in relatively fewer connection points. Compared to full pull trailers, this may result in slightly poorer maneuverability and stability.

Specification

Name	Full trailer
Overall dimension	7200 *2500 * 1550mm (According to customer demand)
Loading capacity	40T
Tare Weight	6.5-7.5T
Axle	2 axles/ 3axles 13 T/16T/20T BPW / FUWA / Fuhua
Rim	8.00-20/8.5-20/8.8-20 China Brand
Tire	12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional)
Suspension	Mechanical suspension(German Type or America Type) or Air suspension
Spring leaf	90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional)
Steel Spring	8/8/8, 10/10/10, 12/12/12 pieces per axle
The material of Main beam	Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel.
Side beam	16mm-25mm channel steel (Material is Q345B carbon steel)
Brake chamber	6 double brake chamber
Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system
Electrical system	24V, 7 pin socket, One set 7-core standard Cable
Valve	WABCO/KANGJIAN valve
Tool box	1set standard tool box( waterproof type)
Side beam	16mm-25mm channel steel (Material is Q345B carbon steel)
Brake chamber	6 double brake chamber

Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system
Electrical system	24V, 7 pin socket, One set 7-core standard Cable
Valve	WABCO/KANGJIAN valve
Tool box	1set standard tool box( waterproof type)

Certifications

Packaging & Shipping

Company Profile

Shandong Fuyuan Special Purpose Vehicle Manufacturing Co., Ltd. Shandong Fuyuan Special Purpose Vehicle Manufacturing Co., Ltd.is a manufacturer of semi-trailers and special purpose vehicles approved by the Ministry of Industry and Information Technology of the People's Republic of China, and a supplier of logistics and energy equipment in the same field of the industry, with products covering six series of manufacturing and research and development, including railroad semi-trailers, barbed semi-trailers, container trucks, vans The company's products cover six series, more than one hundred kinds of products, such as railroad semi-trailer, container truck, van-type semi-trailer, flatbed tipper semi-trailer, special vehicle and semi-trailer for powder and granular material transportation.
The company is located in the famous hometown of Water Margin, east of Beijing-Hangzhou Grand Canal, west of Beijing-Kowloon Railway, south of the peony town of Heze, north of the Yellow River, adjacent to the 220 national highway Jiehe high-speed exit, convenient transportation, pleasant scenery.
The company covers an area of 120 acres, is a collection of scientific research and development, production and sales in one of the specialized production enterprises, advanced production equipment, testing equipment, the company's products through the National Certification and Accreditation Administration Commission acceptance of the national mandatory 3c certification, the product performance of domestic and foreign similar products to meet the indicators.
The company's brand "LUXI", its production of "LUXI" brand is in the semi-trailer industry enjoys a certain degree of visibility, and has a good reputation in the industry.
The company's sales network throughout the country, provinces, cities and municipalities directly under the Central Government and Russia, Vietnam and other export business, and strictly adhering to the customer-centered, customer-satisfaction service ideas, in order to better and faster for the customer to do a good job in good faith service.FAQWHY CHOOSE USQ1. What is the advantage about your company?
A1.Our company has professional team and professional production line.
Q2. Why should l choose your products?
A2.Our products are high quality and low price.
Q3.The logo and the color can be customized?
A3.Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4.Yes,we can provide good after-sale and fast delivery.
Q5. What is your MOQ?
A5:Our minimum order quantity is one unit.
Q6. What about the delivery time?
A6: We have some material in stock, which can make sure to delivery the goods out quickly for small quantity orders. For customized orders, the delivery time is usually within 15 working days after receiving the payment.
